BR llevó luz solar al aire libre con diseño de temporizador de 5W a 120W LED para elegir
10M 120W Luz de calle solar Alto brillo basado en la condición de radiación solar promedio de África 5.0KWH, horas de iluminación: 11-12 horas / día * 3-4 días
1. Altura del poste: 10M, recubierto de plástico en el polo HDG, resistente al viento: 150KM / H 2. Fuente de luz aplicable: 120W LED, vida útil:> 80000Hrs. 3. Módulo FV: Alta eficiencia 200W * 2PCS. 4. Batería gelificada: 180Ah / 12V * 2PCS, Mantenimiento de tarifa, Ciclo profundo, Tipo sellado. 5.Caja de batería: Engineer Steel, Bury under ground o Hanging o Toping son para elegir 6. Controlador: Controlador de 20A / 24V MPPT.
Detailed Specification for 12M-120W led solar outdoor light with timer
|
Part Name and Lifespan
|
Technical Specification
|
Solar Panel:
Lifespan:20-25 years
|
200W*2PCS Polycrystalline. High Efficiency. A-class
Adding Aluminum Frame, Tempered Glass.
|
Gelled Battery
Lifespan:5-8 years
|
180Ah/12V*2PCS, Gelled battery, Sealed Type.
Deep cycle. Maintenance Free
|
Intelligent Solar Controller
Lifespan:5-10 years
|
20A/24V,IP68. Automatic Light and Time Control
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after designed Hours later.(11-12 Hrs)
|
Light source: High Power LED
Lifespan: More than 50000-100000Hrs
|
120W LED, White Color,IP65,
High Power, High Brightness.
|
Lamp Housing:
Lifespan: More than 20 years
|
Die-casted Aluminum, IP65
High transmittance & Density toughened glass,
|
Battery Box:
|
Underground,hang on the pole,tot of pole or at the bottom of the pole are choosing
|
GI Pole System:
Lifespan: More than 20 years
|
10M Height, tapered Pole, Steel,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H
|

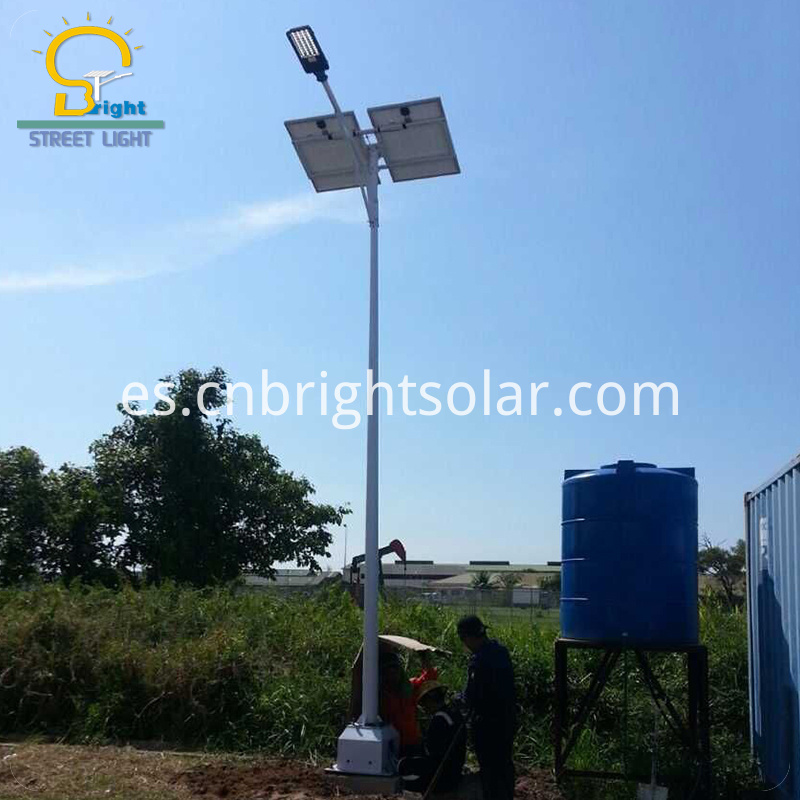

Luz de calle BR SOLAR principio de funcionamiento

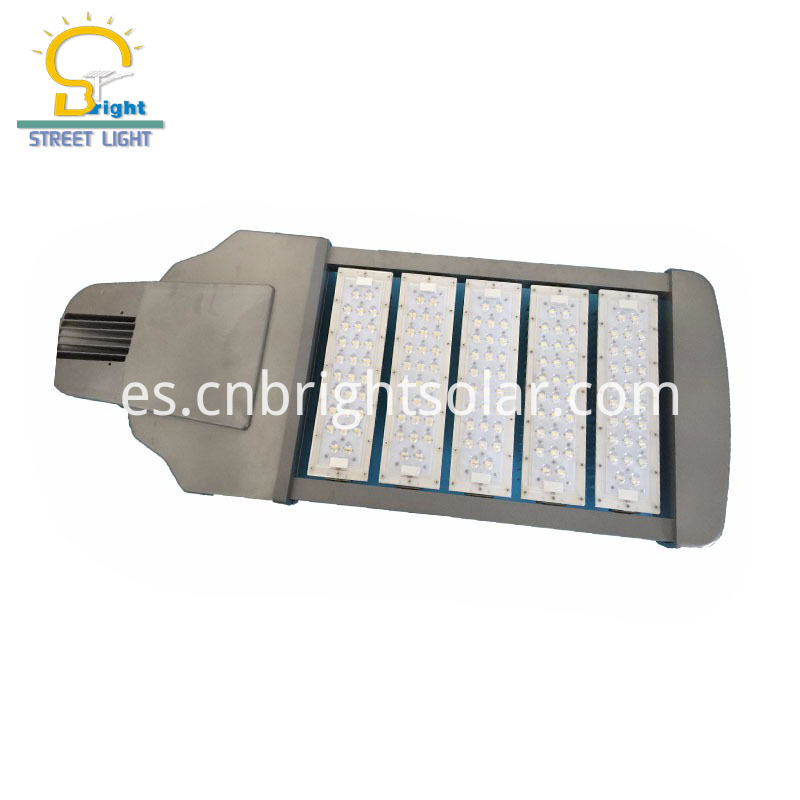

Luz led :

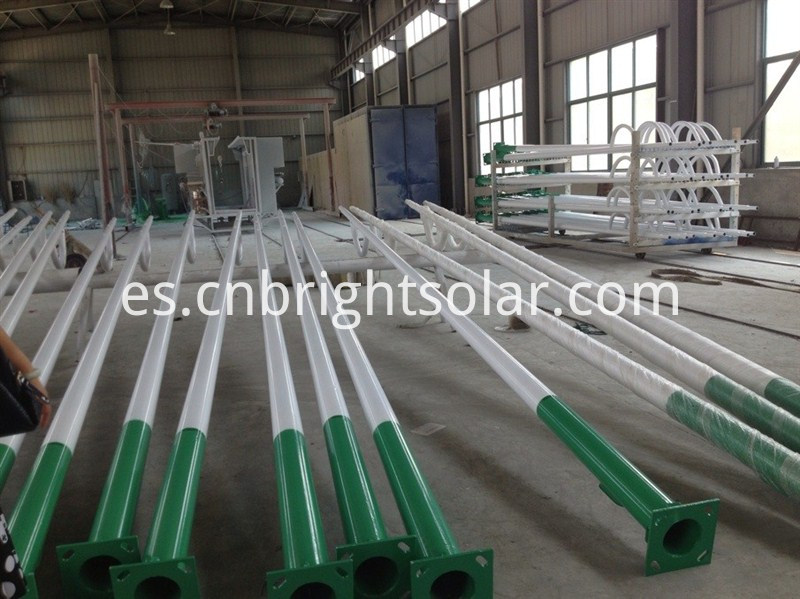

Polos:

Taller de batería:
Tornillos de apoyo base
Controlador de carga de clasificación IP68:
BR SOLAR Embalaje detallado y Laoding:
Luz LED: embalaje de cartón;
Panel PV: Embalaje de cartón y palet;
Batería solar: embalaje de cartón y palet;
Controlador: embalaje de cartón;
Poste y soportes: plástico de burbujas


BR SOLAR Breve introducción:
Yangzhou Bright Solar Solutions Co., Ltd., establecida en 1997, cuenta con la certificación ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT y CCC.
Exploración y popularidad en el extranjero:
Habíamos vendido exitosamente nuestras farolas solares y paneles solares a mercados en el extranjero en más de 50 países como Estados Unidos, Reino Unido, Canadá, Alemania, España, Grecia, Italia, Suecia, Francia, Portugal, Chipre, Rumania, Croacia, Medio Oriente, Nueva Zelanda, Fiji, Noruega, Bélgica, Francia, Italia, Australia, Turquía, Jordania, Irak, Emiratos Árabes Unidos, India, Pakistán, Bangladesh, Qatar, Yemen, Singapur, Filipinas, Camboya, Nigeria, Congo, México, etc.
Tenga en cuenta, nuestros mejores productos competitivos:
Luces de calle solares de 10W-120W LED;
Lámpara LED 10W-240W y carcasa LED;
Panel solar por debajo de 300W;
Sistema solar doméstico integrado de 6W a 3000W;
24Ah / 12V ~ 250Ah / 12V y 300AH / 2V-3000AH / 2V de batería solar
PRODUCTOS POR GRUPO : Farolas solares > Luces de calle solares de 120W
